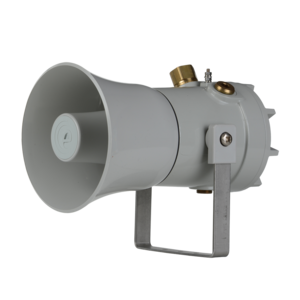

The E2S D1xL1F 117dB(A) 15W Explosion Proof Speaker features a gray marine grade aluminium enclosure, is mounted on a metal bracket, and is angled slightly against a plain white background.

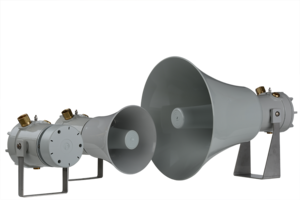

Two E2S D1xL1F 117dB(A) 15W explosion proof speakers with marine grade aluminium enclosures, in different sizes and industrial gray finish, are mounted on metal stands against a plain white background.

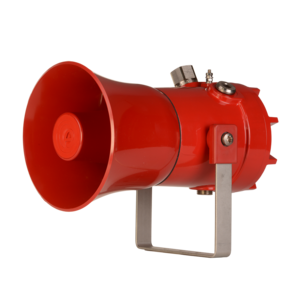

The E2S D1xL1F 117dB(A) 15W Explosion Proof Speaker is a red, bracket-mounted industrial alarm with a marine-grade aluminium enclosure, designed for emergency alerts and warnings in hazardous environments.
Roll over image to zoom in Click on image to zoom
The E2S D1xL1F 117dB(A) 15W Explosion Proof Speaker features a gray marine grade aluminium enclosure, is mounted on a metal bracket, and is angled slightly against a plain white background.Two E2S D1xL1F 117dB(A) 15W explosion proof speakers with marine grade aluminium enclosures, in different sizes and industrial gray finish, are mounted on metal stands against a plain white background.The E2S D1xL1F 117dB(A) 15W Explosion Proof Speaker is a red, bracket-mounted industrial alarm with a marine-grade aluminium enclosure, designed for emergency alerts and warnings in hazardous environments.

E2S D1xL1F 117dB(A) 15W Explosion Proof Speaker

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Video

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The D1xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I & II Div 1 & Zone 1, 20 and 21 explosion proof applications. The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals.. The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Ex trans logo IECEx Logo trans C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Inmetro Trans Logo – industrial safety device from Exloc Instruments Ce Trans logo UKCA Trans logo CSFM Logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Product version A SPL 101dB +/-3dB @ 1W @ 1m (Pink) 113dB +/-3dB @ 15W @ 1m (Rated) 117dB(A) @ 1m at 1.3Khz (Max)
Product version A SPL 88dB +/-3dB @ 1W @ 1m (Pink) 93dB +/-3dB @ 15W @ 1m (Rated) 98dB(A) @ 1m at 1.3Khz (Max)
Rated power 15 Watts RMS
25/70v line tappings 15W/7.5W/5W/4W/2W 25V: z=41.67/83.34/125/156.25/312.5K Ohm 70V: z=326.67/653.34/980/1.225K/2.45K Ohm
70v line tappings 15W/7.5W/3W/1W z=336.67 Ohms/653.33 Ohms/1.6k Ohms/4.9k Ohms
100v line tappings 15W/7.5W/3W/1W z=666.87 Ohms/1.34k Ohms/3.34k Ohms/10k Ohms
Low impedance 8 Ohm or 16 Ohm
Q factor 1.9 @ 500Hz, 3.1 @ 1KHz, 6.0 @ 2KHz, 11.0 @ 4KHz, 10.9 @ 8KHz
Directivity Index 2.9 @ 500Hz, 4.9 @ 1KHz, 7.8 @ 2KHz, 10.4 @ 4KHz, 10.4 @ 8KHz
Frequency range 400Hz to 8000 Hz
DC line monitoring 2.2µF Capacitor (Transformer ) 470µF Capacitor (Low impedance)
Ingress protection EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material Marine grade LM6 aluminum alloy
Enclosure color Red or Grey, custom colors available on request
Enclosure finish Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H
Cable Entries 1×1/2"NPT & 2xM20 Thread adaptors available
Stopping plugs Brass, Nickel Plated or Stainless Steel
Terminals 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Pluggable & duplicated terminals
Ground/Earth stud M5
Enclosure volume <2 liters
Product version A Instillation temp NEC: -55° to +85°C [-67° to +185°F] CEC/IECEx/ATEX: -55° to +75°C [-67° to +167°F]
Product version D Instillation temp NEC Class Div: -40° to +70°C [-40° to +158°F] NEC Class Zone, CEC Class Div/Zone: -55° to +75°C [-67° to +167°F]
Storage temp -55 to +80°C [-67° to +176°F]
Relative humidity 95% – Additional topicalization is recommended for applications where both high relative humidity and high ambient temperatures exist
MTBF V100/V070/V725 630.69 years / 5,524,861 hours – MIL 217
MTBF R008/R016 830.22 years / 7,272,727 hours – MIL 217
Weight 100V, 70V, 25/70V line: 4.3kg/9.5Ibs Low imp.: 4.0kg/8.7Ibs

Resources

Approvals

  • NEC Class Div
    Class I Div 1 Group ABCD T5 Ta -55°C to +85°C (T6 +65°C)
  • CEC Class Div
    Class I Div 1 Group ABCD T5 Ta -55°C to +75°C (T6 +65°C)
  • NEC Class Zone
    Class I Zone 1 AEx db IIC T5 Gb Ta -55°C to +75°C (T6 +60°C)
    Zone 21 AEx tb IIIC T90°C Db Ta -55°C to +75°C
  • CEC Class Zone
    Ex db IIC T5 Gb Ta -55°C to +75°C (T6 +60°C)
    Ex tb IIIC T90°C Db Ta -55°C to +75°C
  • IECEx / ATEX
    II 2G Ex db IIC T5 Gb Ta -55°C to +75°C (T6 +60°C)
    II 2D Ex db IIIC T92°C Db Ta -55°C to +75°C
  • Product version: D: NEC / CEC Class / Div
    Class II Div 1 Group FG T6 Ta -40°C to +70°C
    Class III Div 1 Ta -40°C to +70°C
    Zone 20 IIIB T6 Ta -40°C to +70°C
    • See product manual for full voltage specific coding.
