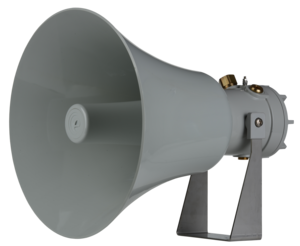

The E2S D1xL2H 126dB(A) 25W Explosion Proof Speaker, featuring a gray marine grade aluminium enclosure, is shown side view on a metal stand against a plain background.

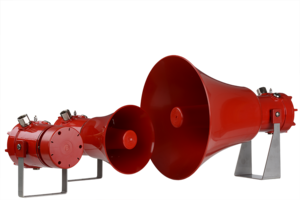

Three E2S D1xL2H 126dB(A) 25W Explosion Proof Speakers, made with marine grade aluminium enclosures, are displayed side by side on a white background.

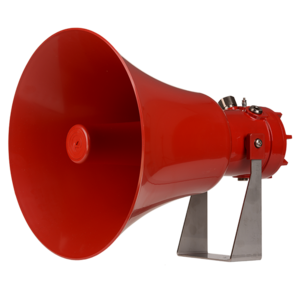

The E2S D1xL2H 126dB(A) 25W Explosion Proof Speaker, with a red marine grade aluminium enclosure, is shown side-on mounted on a silver stand against a plain background.
Roll over image to zoom in Click on image to zoom
The E2S D1xL2H 126dB(A) 25W Explosion Proof Speaker, featuring a gray marine grade aluminium enclosure, is shown side view on a metal stand against a plain background.Three E2S D1xL2H 126dB(A) 25W Explosion Proof Speakers, made with marine grade aluminium enclosures, are displayed side by side on a white background.The E2S D1xL2H 126dB(A) 25W Explosion Proof Speaker, with a red marine grade aluminium enclosure, is shown side-on mounted on a silver stand against a plain background.

E2S D1xL2H 126dB(A) 25W Explosion Proof Speaker

E2S

Highlights

Get A Quote

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals
  • Video

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

The D1xL2H is a 25W PA loudspeaker with a high output re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I Div 1 & Zone 1 and 21 explosion proof applications. The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals. The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

Ex trans logo IECEx Logo trans C UL US Listed Trans Logo – industrial safety device from Exloc Instruments Inmetro Trans Logo – industrial safety device from Exloc Instruments Ce Trans logo UKCA Trans logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Specifications:
Product version A SPL 106dB +/-3dB @ 1W @ 1m (Pink) 120dB +/-3dB @ 25W @ 1m (Rated) 126dB(A) @ 1 m at 1.3Khz (Max)
Rated power 25 Watts RMS
25/70v line tappings 25W/12.5W/6W/2W/1W tappings 25V: z=196/392/816.67/1.225K/2.45K/4.9K Ohm 70V: z=25/50/104.17/156.25K/312.5K/625 Ohm
70v line tappings 25W/12.5W/6W/2W tappings z=196 Ohms/392 Ohms/816.67 Ohms/2.45k Ohms
100v line tappings 25W/12.5W/6W/2W tappings z=400 Ohms/800 Ohms/ 1.67k Ohms/5k Ohms
Low impedance 8 Ohm or 16 Ohm
Q factor 3.1 @ 500Hz, 5.7 @ 1KHz, 11.4 @ 2KHz, 8.1 @ 4KHz, 21.1 @ 8KHz
Directivity Index 4.6 @ 500Hz, 7.6 @ 1KHz, 10.6 @ 2KHz, 9.1 @ 4KHz, 13.2 @ 8KHz
Frequency range 400Hz to 8000 Hz
DC line monitoring 2.2µF Capacitor (Transformer ) 470µF Capacitor (Low impedance)
Ingress protection EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13
Enclosure material Marine grade LM6 aluminum alloy
Enclosure color Red or Grey, custom colors available on request
Enclosure finish Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H
Cable Entries 1×1/2"NPT & 2xM20 Thread adaptors available
Stopping plugs Brass, Nickel Plated or Stainless Steel
Terminals 0.5-2.5mm² (20-14 AWG) Duplicated terminals
Ground/Earth stud M5
Enclosure volume <2 liters
Instillation temp NEC: -55° to +85°C [-67° to +185°F] CEC/IECEx/ATEX: -55° to +75°C [-67° to +167°F]
Storage temp -55 to +80°C [-67° to +176°F]
Relative humidity 95% – Additional topicalization is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight 100V, 70V, 25/70V line: 4.5kg/9.9Ibs Low imp.: 4.2kg/9.1Ibs

Resources

Approvals

  • NEC Class Div
    Class I Div 1 Grp ABCD T5 Ta -55°C to +85°C (T6 +60°C)
  • CEC Class Div
    Class I Div 1 Grp ABCD T5 Ta -55°C to +75°C (T6 +60°C)
  • NEC Class Zone
    Class I Zone 1 AEx db IIC T4 Gb Ta -55°C to +75°C (T5 +70°C)
    Zone 21 AEx tb IIIC T91°C Db Ta -55°C to +75°C
  • CEC Class Zone
    Ex db IIC T4 Gb Ta -55°C to +75°C (T5 +70°C)
    Ex tb IIIC T91°C Db Ta -55°C to +75°C
  • IECEx / ATEX
    II 2G Ex db IIC T4 Gb Ta -55°C to +75°C (T5 +70°C, T6 +55°C)
    II 2D Ex db IIIC T98°C Db Ta -55°C to +75°C
  • Product version: D: NEC / CEC Class / Div
    Class II Div 1 Group FG T6 Ta -40°C to +70°C
    Class III Div 1 Ta -40°C to +70°C
    Zone 20 IIIB T6 Ta -40°C to +70°C
    • See product manual for full voltage specific coding.
