Description
GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-916-4847.

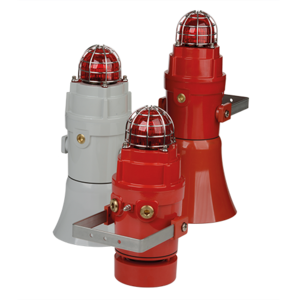

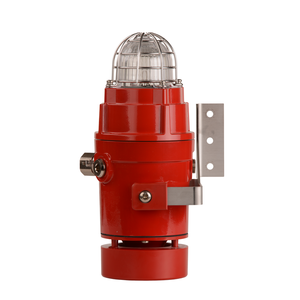

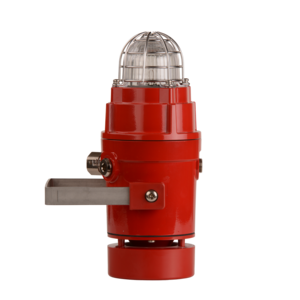

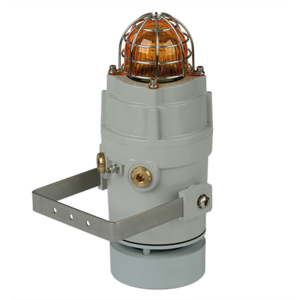

The D1xC1X10R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 10 Joule Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I Div 1, Zone 1, IECEx and ATEx Zone 1, 2, 21 & 22 explosion proof signalling applications.
Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated. Class D amplification provides a high sound output with a choice of two power modes. The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance. The 24Vdc version is approved for public (alarm horn) and private mode fire alarm use. SIL1 & SIL2 compliant to IEC61508 (2010) as standard.
Technical Data
| Alarm Horn: | |
|---|---|
| Maximum output: | 110dB(A) @ 1 metre [101dB(A) @ 10ft/3m] |
| Nominal output: | 105dB(A) @ 1m +/- 3dB – Tone 4 [96dB(A) @ 10ft/3m] |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| No. of stages: | 4 |
| Volume control: | Full range |
| Effective range: | 125m/410ft @ 1KHz |
| Voltages DC: | 24Vdc (20-28Vdc) |
| Voltages AC: | 110-120Vac, 220-240Vac |
| Stage switching: | DC units: negative or positive AC units: common supply line |
| Strobe Beacon: | |
| Energy: | 10 Joules (10Ws) |
| Flash rates: | Option 1: 1Hz (60 fpm) Option 2: 1.5Hz (90 fpm) Option 3: Double Strike |
| Peak Candela: | 1,000,000 cd – calculated from energy (J) |
| Eff. Intensity: | 500 cd – calculated from energy (J) |
| Peak Candela: | 85,544 cd* – measured ref. to I.E.S. |
| Eff. Intensity: | 250 cd – calculated from energy (J) |
| Peak Candela: | 260 cd* – measured ref. to I.E.S. |
| Lens colors: | Amber, Blue, Clear, Green, Magenta, Red & Yellow |
| Tube life: | Emissions reduced to 70% > 5 million flashes |
| General: | |
| Safety Integrity Level: | SIL1 and SIL2 Route 2H IEC61508 (2010) |
| Ingress protection: | EN60529: IP66/67 UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade aluminum LM6 – copper free |
| Enclosure finish: | Chromate & powder coated finish ISO 12944-6 CX, C5VH & C5H |
| Enclosure color: | Red or Grey, custom colors available on request |
| Cable entries: | 1×1/2"NPT & 2xM20 – thread adaptors available |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) Pluggable, duplicated terminals |
| Grounding stud: | M5 |
| Line monitoring: | Blocking diode included. EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted |
| Enclosure volume: | <2 liters |
| Installation temp: | -55 to +85°C [-67° to +185°F] |
| Storage temp: | -55 to +85°C [-67° to +185°F] |
| Relative humidity: | 99% |
| Vibration test: | 35Hz for a duration 4Hr (UL464) |
| Jarring test: | 3ft/lb Energy (UL464) |
| Impact test: | 3x 5lb (UL464) |
| Weight: | 4.9kg/10.9lbs |
Resources
Approvals
- NEC Class / Zone
Class I Zone 1 IIC T3C Gb Ta -55°C to +85°C
Class I Zone 1 IIC T4 Gb Ta -55°C to +70°C (T4A: +55°C) - CEC Class / Zone
Class I Zone 1 IIC T4A Gb Ta -55°C to +55°C - NEC Class / Div
Class I Div 1 ABCD T3C Ta -55°C to +85°C
Class I Div 1 ABCD T4 Ta -55°C to +70°C (T4A: +55°C)
li>CEC Class / Div - IECEx / ATEX
II 2G Ex db IIC T3 Gb Ta -55°C to +75°C
II 2G Ex db IIC T4 Gb Ta -55°C to +65°C
II 2D Ex tb IIIC T137°C Db Ta ‐55°C to +75°C
See product manual for full voltage specific coding.
Class I Div 1 ABCD T4A Ta -55°C to +55°C
