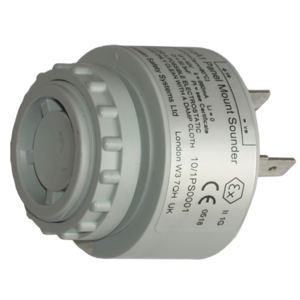

The E2S IS-pA1 Panel Mount Sounder features a cylindrical design, a label with technical specs, side mounting prongs, and built-in reverse current protection for improved device safety.
Roll over image to zoom in Click on image to zoom
The E2S IS-pA1 Panel Mount Sounder features a cylindrical design, a label with technical specs, side mounting prongs, and built-in reverse current protection for improved device safety.

E2S IS-pA1 Panel Mount Sounder

E2S
Price:
$519.00

Highlights

  • Description
  • Technical Data
  • Resources
  • Approvals

Description

GET A QUOTE – Not available for purchase online. Please click the link to request a quote or call 281-545-3968.

The IS-pA1 is a compact, panel mount 90dB(A) intrinsically safe alarm buzzer. Producing a high frequency continuous tone, the IS-pA1 can be pulsed to produce different sounds. Utilising the supplied threaded lock nut the IS-pA1 mounts into a 28mm hole – ideal for applications in control panels where a fault indication or other process alarm is required.

Ex trans logo IECEx Logo trans UKCA Trans logo
Authorized Dealer

We are an authorized E2S distributor shipping to locations worldwide.

Technical Data

Nominal output: 89.6dB(A) @ 1m +/- 3dB [80.6dB(A) @ 10ft/3m]
No. of tones: 1 – continuous tone
Frequency 2600Hz
Voltages 16-28vdc via Zener barrier or galvanic isolator
Current 12mA typical when powered from 24v supply Zener barrier
Ingress protection: IP66
Rating Continuous
Housing material UL94V0 & 5VA FR ABS
Housing color RAL7038 Grey
Mounting Panel mount – 28.5mm
Terminals: Spade terminals
Operating temp: -40° to +60°C [-40 to +140°F]
Storage temp: -40° to +70°C [-40 to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: 60g / 0.13Ibs

Resources

Approvals

  • ATEX / IECEx
  • II 1G Ex ia IIB T6 Ga (-30ºC <=Ta<= +60°C)
Ex trans logo IECEx Logo trans UKCA Trans logo
